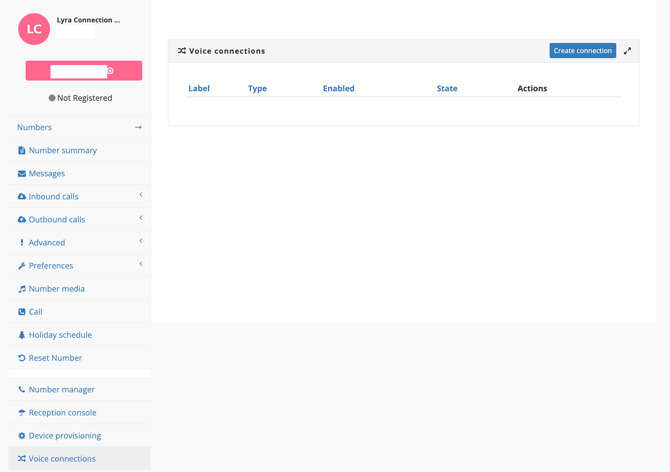

--- title: Lyra Voice Connections description: lyra voice connections configure voice trunks --- [Skip to content](https://support.2talk.co.nz/lyra-voice-connections#main-content) [![2tlogo](https://support.2talk.co.nz/hs-fs/hubfs/2tlogo.png?width=128&height=60&name=2tlogo.png)](https://www.2talk.co.nz//) Open main navigation Close main navigation Hi. How can we help? - There are no suggestions because the search field is empty. 1. [2talk](https://support.2talk.co.nz/?hsLang=en) 2. [Voice](https://support.2talk.co.nz/voice?hsLang=en) 3. [2talk Lyra Voice Platform](https://support.2talk.co.nz/voice?hsLang=en#2talk-lyra-voice-platform) # Lyra Voice Connections ## Lyra voice trunks can be configured in the Cloud PABX Voice Connections menu Your one stop shop for setting up voice trunks the Voice Connections module replaces all previous Voice Trunking configuration methods.   Configuration of the following Voice Connection types is currently supported with more options coming soon. - SIP Peering Trunks - SIP Register Trunks - BYOC Trunks - Genesys and Twilio currently supported - Microsoft Teams Direct Routing Trunks To find the Voice Connections module log into your 2talk account and select the Cloud PBX tab from the top menu. Voice Connections can be found in the left hand Cloud PBX menu.  Click to bring up the Voice Connections management page. ![](https://support.2talk.co.nz/hs-fs/hubfs/image-png-Feb-23-2026-01-49-59-4640-AM.png?width=670&height=472&name=image-png-Feb-23-2026-01-49-59-4640-AM.png) ### Creating a New Connection Click the Create connection button Enter a name for the connection/trunk in the Label field (mandatory). The label field is an alphanumeric field, underscore, dash and full stop are also supported. Select the Connection Type from the drop down menu and complete the connection form as appropriate. For full instructions please see the support article for the selected connection type. Click the Deploy button to create your connection. 2talk will automatically assign a pilot number to the connection and this pilot will be the default outbound CLI unless you select an alternate number.  You can do this during initial configuration or by editing the trunk at a later date.  If your Voice Connection is migrated this behaviour may differ. ![](https://support.2talk.co.nz/hs-fs/hubfs/image-png-Apr-01-2026-02-09-23-0594-AM.png?width=670&height=245&name=image-png-Apr-01-2026-02-09-23-0594-AM.png) ### Assigning Numbers Once created you will be able to assign numbers to the connection. You can assign at Account, Group or Number level ![](https://support.2talk.co.nz/hs-fs/hubfs/image-png-Feb-23-2026-02-29-34-6783-AM.png?width=670&height=356&name=image-png-Feb-23-2026-02-29-34-6783-AM.png) ### Managing Connections Once your connection is created you will have the option to edit the connection or to assign numbers to the connection. **ID:** 2talk will assign a unique ID to the trunk for identification purposes. **Label: **Connection Name, this field can be edited **Type:** Indicates connection type. This cannot be changed once the trunk is created **Enabled:** Indicates if connection is enabled or not **Trunk State:** Trunk State Deploying means your connection is still in the process of being on the voice platform. The state will show as deployed once it is ready to route calls. **Actions: **Edit connection settings or Assign numbers to the connection ![](https://support.2talk.co.nz/hs-fs/hubfs/image-png-Feb-26-2026-09-45-25-4836-PM.png?width=670&height=171&name=image-png-Feb-26-2026-09-45-25-4836-PM.png) ### **Delete Connection** Enables the user to delete the voice connection. If the connection is still assigned to a number, group, or account, remove those assignments first using Manage Assignments. Once nothing is using the connection, it can be deleted.     - [Accounts & Billing](https://support.2talk.co.nz/accounts-billing?hsLang=en#main-content) - [Manage Account](https://support.2talk.co.nz/accounts-billing?hsLang=en#manage-account) - [Billing & Payment](https://support.2talk.co.nz/accounts-billing?hsLang=en#billing-payment) - [Getting Help](https://support.2talk.co.nz/accounts-billing?hsLang=en#getting-help) - [Broadband](https://support.2talk.co.nz/broadband?hsLang=en#main-content) - [Getting Started](https://support.2talk.co.nz/broadband?hsLang=en#getting-started) - [Troubleshooting](https://support.2talk.co.nz/broadband?hsLang=en#troubleshooting) - [Broadband Plans](https://support.2talk.co.nz/broadband?hsLang=en#broadband-plans) - [Device Guides](https://support.2talk.co.nz/broadband?hsLang=en#device-guides) - [Voice](https://support.2talk.co.nz/voice?hsLang=en#main-content) - [Getting Started with 2talk Voice](https://support.2talk.co.nz/voice?hsLang=en#getting-started-with-2talk-voice) - [Troubleshooting](https://support.2talk.co.nz/voice?hsLang=en#troubleshooting) - [2talk Cloud PBX](https://support.2talk.co.nz/voice?hsLang=en#2talk-cloud-pbx) - [SIP Trunks](https://support.2talk.co.nz/voice?hsLang=en#sip-trunks) - [Softphones and Devices](https://support.2talk.co.nz/voice?hsLang=en#softphones-and-devices) - [2talk Voice Plans and Services](https://support.2talk.co.nz/voice?hsLang=en#2talk-voice-plans-and-services) - [2talk Lyra Voice Platform](https://support.2talk.co.nz/voice?hsLang=en#2talk-lyra-voice-platform) - [Mobile](https://support.2talk.co.nz/mobile?hsLang=en#main-content) - [Getting Started](https://support.2talk.co.nz/mobile?hsLang=en#getting-started) - [Troubleshooting](https://support.2talk.co.nz/mobile?hsLang=en#troubleshooting) - [Mobile Plans and Services](https://support.2talk.co.nz/mobile?hsLang=en#mobile-plans-and-services) - [3G Shutdown](https://support.2talk.co.nz/mobile?hsLang=en#3g-shutdown) - [Messaging](https://support.2talk.co.nz/messaging?hsLang=en) - [Voice AI](https://support.2talk.co.nz/voice-ai?hsLang=en) [![2talk_logo_17](https://support.2talk.co.nz/hs-fs/hubfs/2talk_logo_17.png?width=50&height=23&name=2talk_logo_17.png "2talk_logo_17")](https://www.2talk.co.nz) Copyright © 2025, 2talk
